| 加工定制：是 | 类型：ADDA鼓风机 | 品牌：ADDA |
| 型号：AB0924HB-Z01 | 电压：24（V） V |

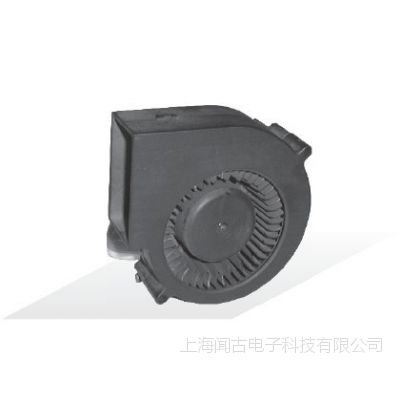

ADDA鼓风机 94*94*33 AB0924HB-Z01网络机柜用 高转速大风量
| Fan =BLOWER | Size =94x94x33 | Speed = | Flow = | Noise = |
| Bearing type: ◎=Ball ※=Sleeve ○=1B1S ●=Hypro Bearing | |||||||||
| Frame Size | Model No | Bearing | Volt. (VAC) | Current (A) | Speed (rpm) | Air Flow (CFM) | Pressure (InAq) | Noise (dB/A) | |
| 94x94x33(n) | AB0912DB-Z03(N) | ◎ | 12 | 0.32 | 2800 | 22.578 | 0.471 | 44.0 | |
| 94x94x33(n) | AB0912LB-Z03(N) | ◎ | 12 | 0.48 | 3200 | 26.699 | 0.740 | 48.4 | |
| 94x94x33(n) | AB0912MB-Z03(N) | ◎ | 12 | 0.67 | 3600 | 29.228 | 0.871 | 52.2 | |
| 94x94x33(n) | AB0912HB-Z03(N) | ◎ | 12 | 0.78 | 4000 | 32.832 | 1.115 | 56.3 | |
| 94x94x33(n) | AB0912UB-Z03(N) | ◎ | 12 | 1.24 | 4500 | 36.620 | 1.730 | 57.5 | |
| 94x94x33(n) | AB0924LB-Z03(N) | ◎ | 24 | 0.23 | 3200 | 26.699 | 0.740 | 48.4 | |
| 94x94x33(n) | AB0924MB-Z03(N) | ◎ | 24 | 0.27 | 3600 | 29.228 | 0.871 | 52.2 | |
| 94x94x33(n) | AB0924HB-Z03(N) | ◎ | 24 | 0.35 | 4000 | 32.832 | 1.115 | 56.3 | |
| 94x94x33(n) | AB0948HB-Z03(N) | ◎ | 48 | 0.26 | 4000 | 32.832 | 1.115 | 56.3 | |
若需要了解
ADDA鼓风机 94*94*33 AB0924HB-Z01网络机柜用 高转速大风量
更详细的信息，请联系：
