| 加工定制：是 | 类型：直流风扇 | 品牌：ADDA |
| 型号：AD17212MB5151MO(OCW) | 电压：12（V） V |

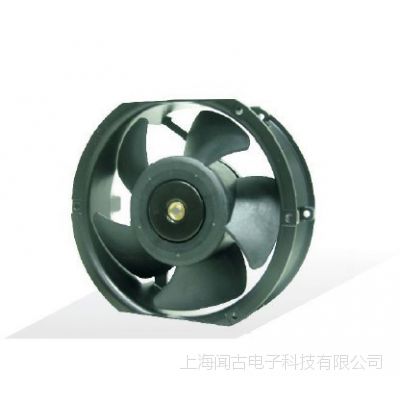

ADDA直流风扇AD17212MB5151MO(OCW)变频器专用17251/12V
| Fan =DC-Fan | Size =172x150x51 | Speed = | Flow = | Noise = |
| Bearing type: ◎=Ball ※=Sleeve ○=1B1S ●=Hypro Bearing | |||||||||
| Frame Size | Model No | Bearing | Volt. (VAC) | Current (A) | Speed (rpm) | Air Flow (CFM) | Pressure (InAq) | Noise (dB/A) | |
| 172x150x51(0cw) | AD17212DB5151M0(0CW) | ◎ | 12 | 1.65 | 3500 | 265 | 0.75 | 58.8 | |
| 172x150x51(0cw) | AD17212LB5151M0(0CW) | ◎ | 12 | 2.30 | 3900 | 295 | 0.89 | 60.6 | |
| 172x150x51(0cw) | AD17224DB5151M0(0CW) | ◎ | 24 | 0.83 | 3500 | 265 | 0.75 | 58.8 | |
| 172x150x51(0cw) | AD17224LB5151M0(0CW) | ◎ | 24 | 1.10 | 3900 | 295 | 0.89 | 60.6 | |
| 172x150x51(0cw) | AD17224MB5151M0(0CW) | ◎ | 24 | 1.45 | 4300 | 327 | 1.07 | 64 | |
| 172x150x51(0cw) | AD17224HB5151M0(0CW) | ◎ | 24 | 1.95 | 4800 | 362 | 1.33 | 65.7 | |
| 172x150x51(0cw) | AD17224UB5151M0(0CW) | ◎ | 24 | 2.56 | 5300 | 417 | 1.69 | 67.9 | |
| 172x150x51(0cw) | AD17248DB5151M0(0CW) | ◎ | 48 | 0.43 | 3500 | 265 | 0.75 | 58.8 | |
| 172x150x51(0cw) | AD17248LB5151M0(0CW) | ◎ | 48 | 0.57 | 3900 | 295 | 0.89 | 60.6 | |
| 172x150x51(0cw) | AD17248MB5151M0(0CW) | ◎ | 48 | 0.77 | 4300 | 327 | 1.07 | 64 | |
| 172x150x51(0cw) | AD17248HB5151M0(0CW) | ◎ | 48 | 1.05 | 4800 | 362 | 1.33 | 65.7 | |
| 172x150x51(0cw) | AD17248UB5151M0(0CW) | ◎ | 48 | 1.25 | 5300 | 417 | 1.69 | 67.9 | |
若需要了解更详细的信息，请联系：
销售经理：荣路路
手机：18916936753
电话：021-64969357
传真：021-64969397
Q Q：120415193
E-MAIL：adda_ronglulu@163.com
HTTP：
地址：上海市闵行区莘朱路779号莘南商务楼423室.
